TrekType: Kids Bike




Trek Wahoo 24 Path
SKU: 5336067UPC: 197216224730
$599.99
In Stock
Secure checkout•Returns accepted within 30 days
Description

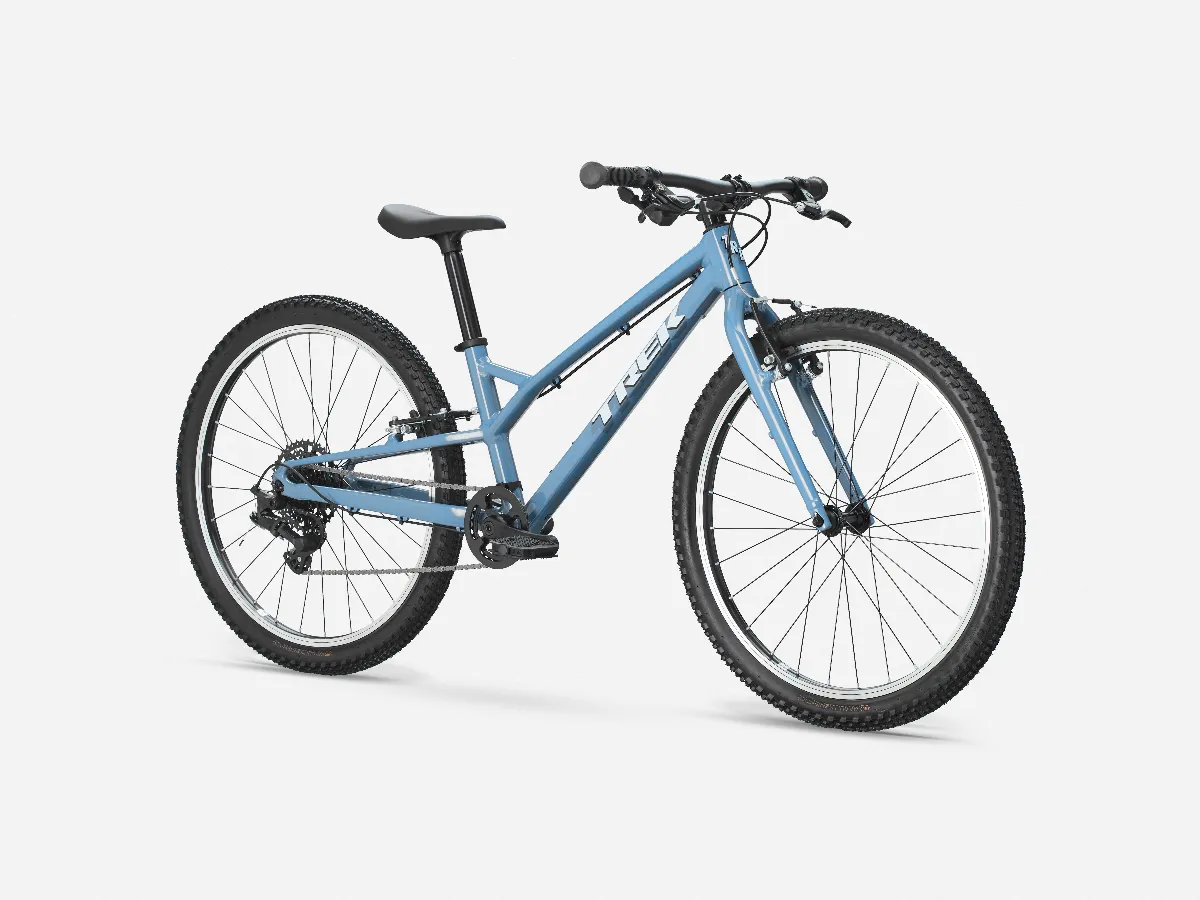

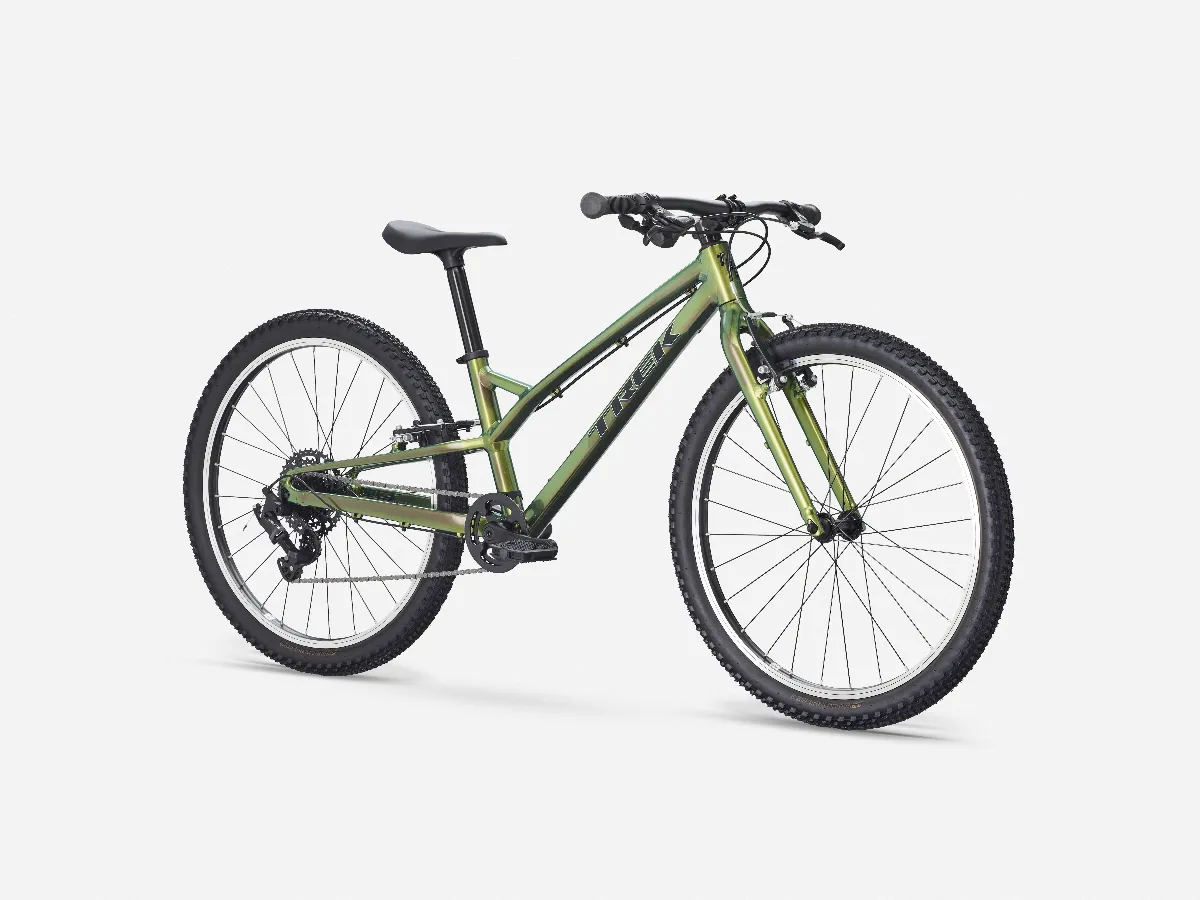

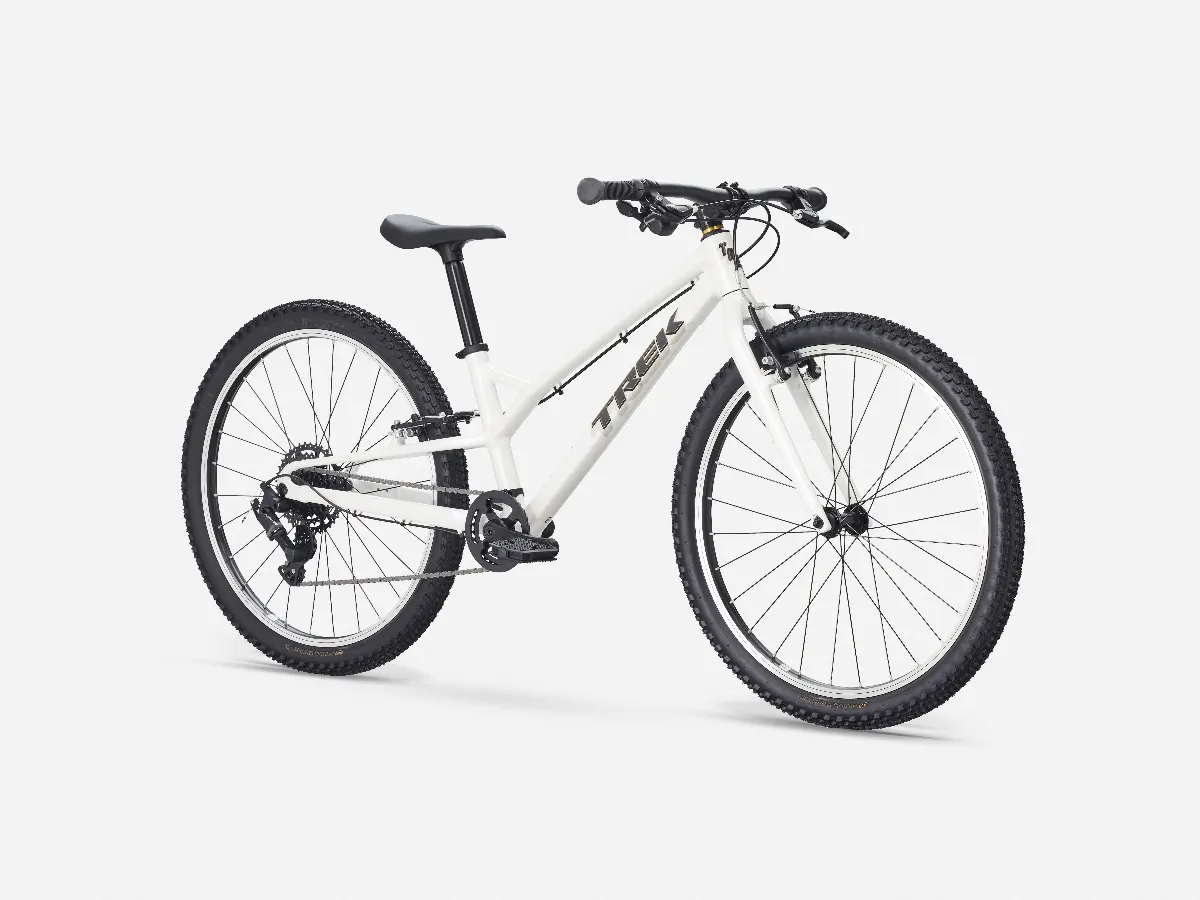

Wahoo 24 Path is a lightweight kids' bike ready to roll from city park to greenways and beyond while your mini-me builds confidence and skills. It's built with a sturdy aluminum frame that holds up to their bumps and jumps and wide, smooth tires that help them carry speed on pavement without sacrificing grip. Plus, they get 8 gears to shift through as they work their way up big hills, and rim brakes to slow their roll on the way back down. Fit for riders 51-59" tall.
- Wahoo's aluminum frame is light enough for easy handling and tough enough to roll through the rough stuff
- The simple 1x8 drivetrain keeps shifting easy so kids can focus on having fun
- Smooth yet grippy tires help them gain confidence and speed without sacrificing traction
- Trek kids' bikes are designed and assembled by people who know bikes — and backed by a lifetime warranty
Tech Specs
| Frame | Alpha Silver Aluminum, 24'' |
| Fork | Wahoo 24'' alloy, V-brake bosses, ThruSkew 5mm QR |
| Tire | Bontrager Connection Comp, wire bead, 30 tpi, 24x2.00'' |
| Hub Front | Formula alloy, 100mm |
| Hub Rear | Formula FM32 alloy, 135x5mm |
| Rim | Alloy 24'', 28h |
| Skewer Front | 135x5mm bolt-on |
| Skewer Rear | 169x5mm bolt-on |
| Shifter | microSHIFT Acolyte SL-M6285, 8 speed |
| Rear Derailleur | microSHIFT Acolyte M5180S, 34-38T max cog |
| Crank | Alloy, 28T steel ring, chainguard, 127mm length |
| Bottom Bracket | Sealed cartridge, 68mm |
| Cassette | microSHIFT Acolyte H083, 11-38, 8 speed |
| Chain | KMC Z8 |
| Brake | Alloy linear-pull // Alloy linear-pull |
| Brake Lever | Kids' alloy brake lever, black |
| Pedal | Kids' Satellite, 9/16 thread |
| Saddle | Kids' padded, integrated seatpost, Blendr light mount, 31.6x270mm |
| Seat Collar | Bolt-on, 36.4mm |
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise, 580mm width |
| Stem | Bontrager Comp, 31.8mm, Blendr compatible, 7 degree, 50mm length |
| Headset | Integrated, sealed cartridge bearings |
| Grips | Kids' grip, 110mm width |
Kid-friendly trigger shifters
Thumb-activated shifters make it easy to find the right gear and set young riders up for success with a kid-friendly version of the shifters you find on adult bikes.

Comfortable, confident geometry
An upright hybrid-style geometry mimics the feel of an adult bikeand keeps kids confident and comfortable for days where they want to ride until dinner time.

Geometry
| B B Drop | 4.3 |
| B B Height | 27.4 |
| Chainstay Length | 42 |
| Eff Top Tube | 53 |
| Frame Reach | 39 |
| Frame Stack | 45.8 |
| Head Angle | 67.0° |
| Head Tube Length | 9 |
| Seat Tube | 30 |
| Seat Tube Angle | 73.0° |
| Standover | 53 |
| Trail | 8.1 |
| Wheelbase | 103.2 |
| Wheel Size | 24" kids' |
