TrekType: Kids Bike

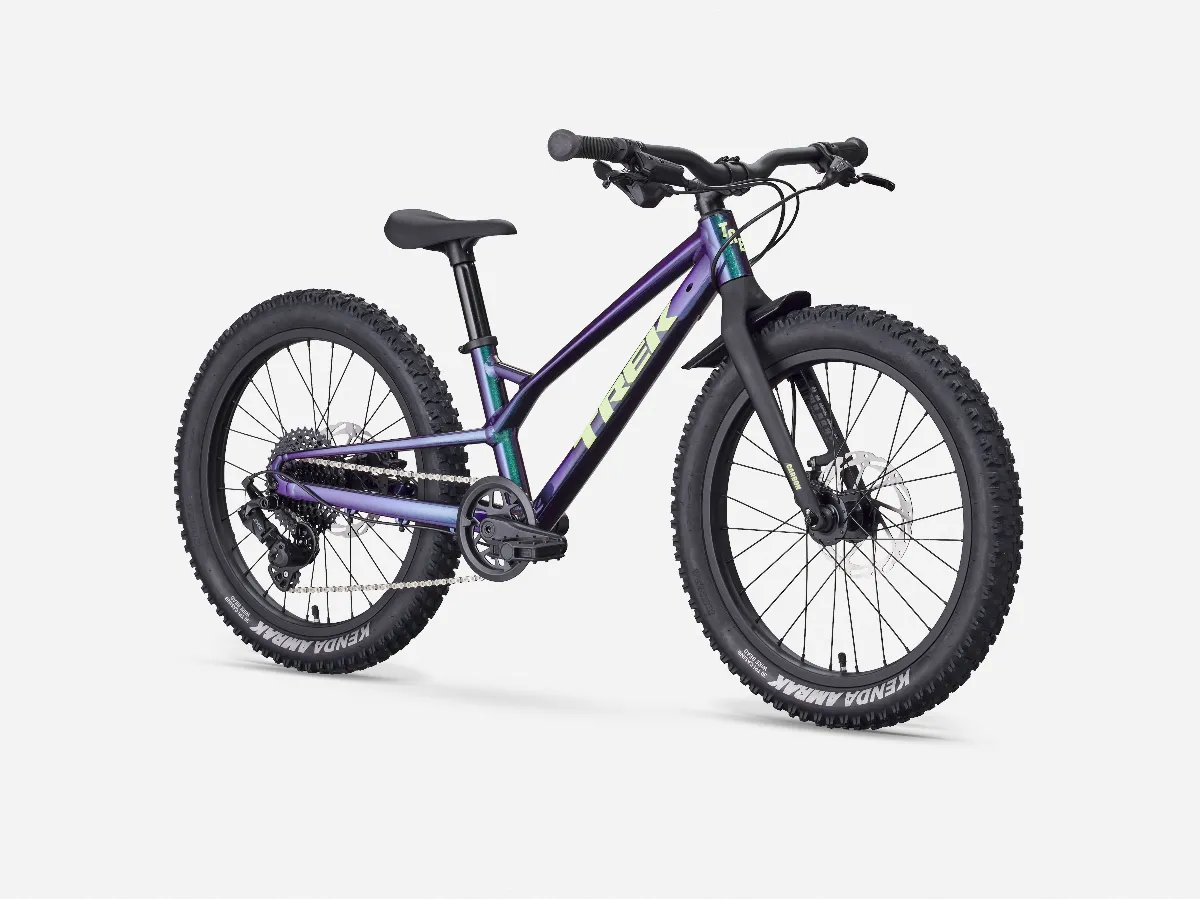

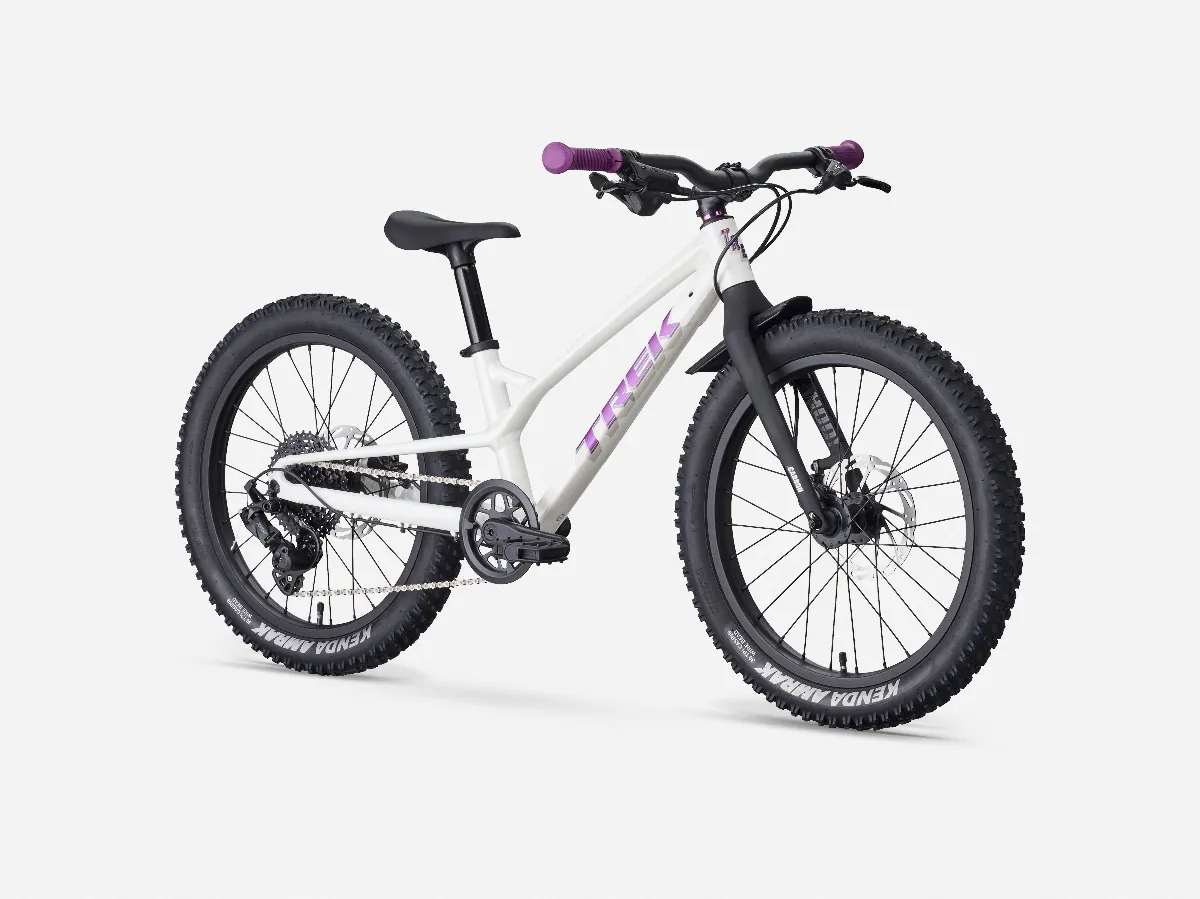

Trek Wahoo 20 Trail
SKU: 5336008UPC: 197216224792
$749.99
Secure checkout•Returns accepted within 30 days
Description
Wahoo 20 Trail is a light and tough kids' bike that's ready to roll off-road. Its sturdy aluminum frame is easy to maneuver as they weave their way down the trail and rugged enough to handle the tough stuff. A 9-speed 1x drivetrain gives them plenty of gears for pedaling up steep trails, and disc brakes provide next-level stopping power to slow their roll or help them stop on a dime on the way back down. Perfect for riders between 45-52" tall.
- Wahoo's aluminum frame is light enough for easy handling and tough enough to roll through the rough stuff
- Hydraulic disc brakes give them the same serious stopping power you'll find on adult mountain bikes
- A 9-speed drivetrain gives your kiddo plenty of gears to shift through, but isn't too much to handle
- Wide and knobby 2.4in tires provide heaps of traction for confidence on the trail
- Trek kids' bikes are designed and assembled by people who know bikes — and backed by a lifetime warranty
Tech Specs
| Frame | Alpha Silver Aluminum, 20'' |
| Fork | Wahoo 20'' carbon, post mount disc brake, ThruSkew 5mm QR |
| Tire | Kenda Amrak, 30 tpi, 20x2.20'' |
| Hub Front | Formula DC-20, alloy, 6-bolt, 100mm |
| Hub Rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm |
| Rim | Alloy 20'', 28H // Alloy 20'', 28h |
| Skewer Front | 135x5mm bolt-on |
| Skewer Rear | 169x5mm bolt-on |
| Shifter | microSHIFT Advent Quick Trigger Pro SL-M6295, 9 speed |
| Rear Derailleur | microSHIFT Advent RD-M6195S, 34-38T max cog |
| Crank | ProWheel alloy, 30T narrow-wide ring, 115mm length |
| Bottom Bracket | Sealed cartridge, 68mm |
| Cassette | microSHIFT Advent H093, 11-38, 9 speed |
| Chain | KMC X9 |
| Brake | Tektro HD-J285 hydraulic disc // Tektro HD-J285 hydraulic disc |
| Brake Rotor | Tektro, 6-bolt, 160mm |
| Pedal | VP-225 nylon platform |
| Saddle | Kids' padded, integrated seatpost, Blendr light mount, 31.6x230mm |
| Seat Collar | Bolt-on, 36.4mm |
| Handlebar | Bontrager alloy, 31.8mm clamp, 20mm rise, 580mm width |
| Stem | Bontrager alloy, 31.8mm clamp, 6 degree, 45mm length |
| Headset | Integrated, sealed cartridge bearings |
| Grips | Kids' grip, 110mm width |
| Fender | Trek custom |
Lightweight carbon fork
A durable carbon fork cuts weight for easy maneuverability, absorbs bumps in the trail for happier rides on rough terrain, and comes with a legit front fender that screams, "real mountain bike".

Dropper post compatibility
Wahoo Trail can accommodate an internally-routed 31.6mm dropper post for little rippers who want to get their saddle out of the way for extra rowdy descents.

Kid-friendly trigger shifters
Thumb-activated shifters make it easy to find the right gear and set young riders up for success with a kid-friendly version of the shifters you find on adult bikes.

Comfortable, confident geometry
An upright hybrid-style geometry mimics the feel of an adult bikeand keeps kids confident and comfortable for days where they want to ride until dinner time.

Geometry
| B B Drop | 4 |
| B B Height | 23 |
| Chainstay Length | 37.2 |
| Eff Top Tube | 44.8 |
| Frame Reach | 32.4 |
| Frame Stack | 40.7 |
| Head Angle | 67.0° |
| Head Tube Length | 8.5 |
| Seat Tube | 25.5 |
| Seat Tube Angle | 73.0° |
| Standover | 47.6 |
| Trail | 6.5 |
| Wheelbase | 89.5 |
| Wheel Size | 20" kids' |
