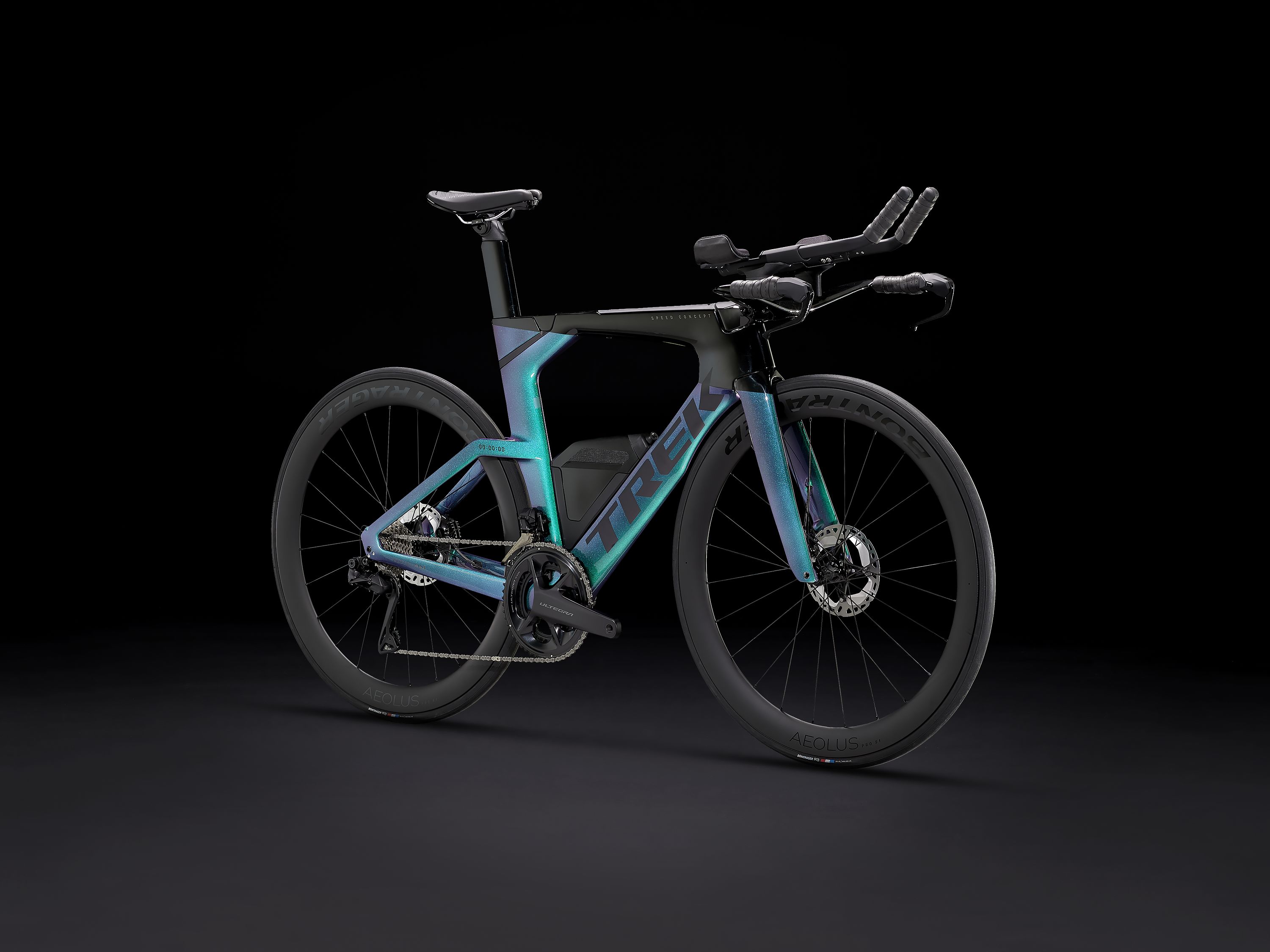

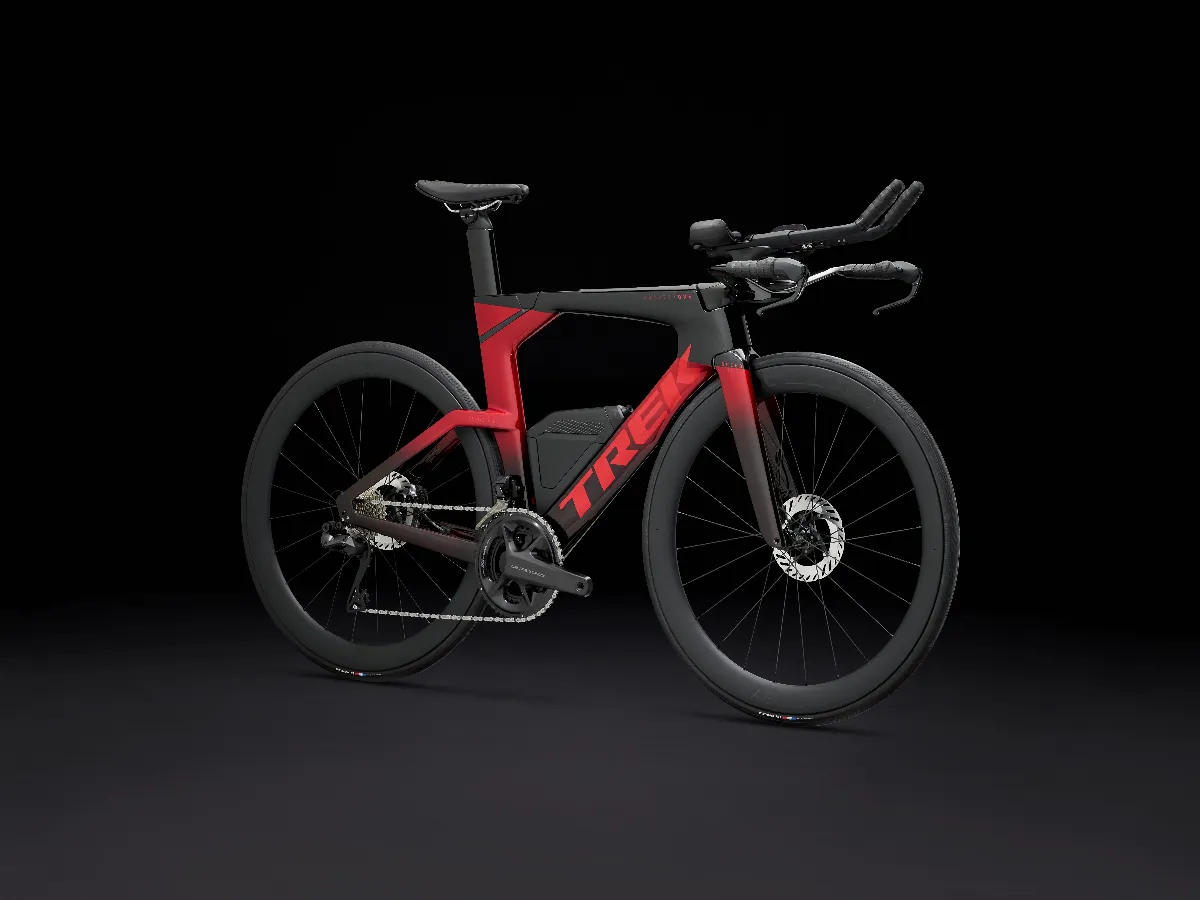

Trek Speed Concept SLR 7
Description
- Smart integrated fuel and hydration storage makes it simple and stress-free to stay strong without leaving your aero position
- Top Tube IsoSpeed takes the edge off rough roads and is damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- Easy build, easy travel: fast assembly makes it easier to travel to races
- The wireless electronic Ultegra Di2 delivers faster, smoother, and more responsive shifts than ever
- Make it yours: it's fully customizable through Project One. Choose your model. Choose your paint. Choose your parts.
Tech Specs
| Frame | 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, T47 BB, integrated Bento box, integrated downtube storage |
| Fork | SC full foil carbon, integrated brake & stem |
| Wheel Front | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle // Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle |
| Wheel Rear | Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle // Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, Shimano 11/12-speed freehub, 142x12mm thru axle |
| Tire | Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25mm |
| Skewer Front | Bontrager Switch thru axle |
| Skewer Rear | Bontrager Switch thru axle, removable lever |
| Shifter | Shimano Dura-Ace hydraulic disc, R9180 Di2 lever, R9270 caliper, 160mm rotor // Shimano Dura-Ace hydraulic disc, R9180 Di2 lever, R9270 caliper, 160mm rotor |
| Front Derailleur | Shimano Ultegra R8150 Di2, braze-on, down swing |
| Rear Derailleur | Shimano Ultegra R8150 Di2, 34T max cog |
| Crank | Shimano Ultegra R8100, 52/36, 172.5mm length |
| Bottom Bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano Ultegra R8101, 11-30, 12 speed |
| Chain | Shimano Ultegra/XT M8100 |
| Brake Rotor | Shimano CL800, centerlock, 160mm |
| Saddle | Bontrager Hilo Comp, hollow chromoly rails |
| Seatpost | Speed Concept SLR, 11.5mm or -20mm offset, tall length |
| Handlebar | Speed Concept mid-rise bar/stem |
| Battery | Shimano BT-DN300 |
Fast aero shapes
This Speed Concept is the fastest bike we’ve ever tested—and it’s six minutes faster than the previous model at Kona. The ultralight 800 Series OCLV Carbon frame’s drag-reducing Kammtail Virtual Foil tube shapes cut through the air.
Smart storage
Integrated fuel and hydration storage makes it simple and stress-free to stay strong without leaving your aero position.
Dial in the perfect fit
Our system is designed to fit as many triathletes as possible. It’s fully customizable, simple to adjust, and preserves your fit while you travel
Smooth ride
Top Tube IsoSpeed takes the edge off rough roads, keeping you fresher and less fatigued not only on your ride, but on your run as well.
Shimano Ultegra Di2
Ultegra Di2 R8100 is Shimano's most inspired drivetrain, packed with innovative, game-changing features. HYPERGLIDE+ technology allows for crisp, seamless shifts both up and down the gear range, even during maximal efforts. The new Di2 shifting system introduces Shimano's exclusive wireless integrated circuit, and the move to a 12 speed cassette ensures you have all the gearing you need. Ergonomics and aerodynamics have been enhanced at every turn, and you can set up the drivetrain just the way you like it via Shimano’s user-friendly E-Tube app.
Don’t forget your pedals
This bike doesn’t come with pedals because you’ll have a better time on your new bike if you choose your own. See the pedal guide to find the best pedals for your riding style. We recommend clipless road pedals for control and efficiency.
Geometry
| B B Drop | 8 |
| Chainstay Length | 41 |
| Eff Top Tube | 56.5 |
| Frame Reach | 44.5 |
| Frame Size Letter | XL |
| Frame Stack | 56.5 |
| Head Angle | 72.5° |
| Head Tube Length | 14 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 74 |
| Saddle Rail Height Max Tall | 83 |
| Saddle Rail Height Min Short | 62.8 |
| Saddle Rail Height Min Tall | 71.8 |
| Seat Tube | 57.4 |
| Seat Tube Angle | 78.0° |
| Standover | 83.1 |
| Trail | 6 |
| Wheelbase | 104.7 |
| Wheel Size | 700c |
