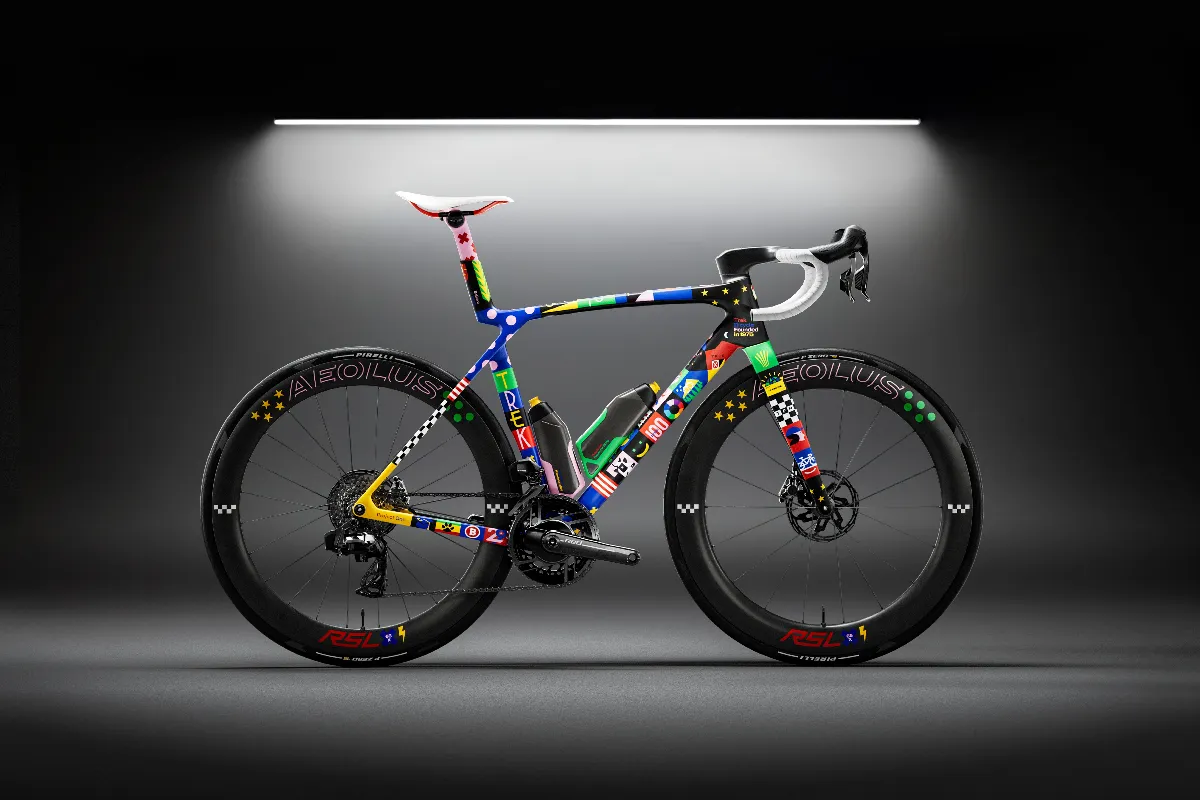

Trek Madone SLR 9 AXS Gen 8 - The First 50 ICON
Description
Tech Specs
| Fork | Madone Gen 8 one-piece carbon, tapered carbon steerer, internal brake routing, flat mount disc, 12x100mm chamfered thru axle |
| Wheel Front | Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, 100x12mm thru axle, 50th anniversary edition |
| Wheel Rear | Bontrager Aeolus RSL 65X, OCLV Carbon, Tubeless Ready, SRAM XDR freehub, 142x12mm thru axle, 50th anniversary edition |
| Tire | Pirelli P Zero Race TLR RS, 120 tpi, tubeless compatible, 700x28mm |
| Skewer Front | Bontrager Switch chamfered thru axle |
| Skewer Rear | Bontrager Switch chamfered thru axle, removable lever |
| Shifter | SRAM RED AXS E1 // SRAM RED AXS E1 |
| Front Derailleur | SRAM RED AXS E1, braze-on |
| Rear Derailleur | SRAM RED AXS E1, 36T max cog |
| Crank | SRAM RED AXS E1, power meter, 48/35, DUB, 165mm length |
| Bottom Bracket | SRAM DUB, T47 threaded, internal bearing |
| Cassette | SRAM RED XG-1290 E1, 10-33, 12 speed |
| Chain | SRAM RED E1 |
| Brake Rotor | SRAM Paceline X, rounded, centerlock, 160mm |
| Saddle | Aeolus RSL, carbon rails, 145mm width, 50th anniversary edition |
| Seatpost | Madone aero carbon seatpost, 0mm offset, short length |
| Handlebar | Trek Aero RSL Road integrated bar/stem, OCLV Carbon, Race Fit, 80mm reach, 124mm drop, 39cm control width, 42cm drop width, 90mm stem length |
| Battery | SRAM AXS battery pack (with charger) |
Our lightest Madone Disc ever
New light and fast aero tube shaping paired with our best 900 Series OCLV Carbon makes Gen 8 our lightest Madone Disc f/s ever and as light as the Émonda f/s.
Redefines what fast looks like
Revolutionary new Full System Foil aero tube shapes improve airflow over the whole bike while maintaining the lightness climbers crave. Plus, the bike’s entire rider system was meticulously designed and rigorously tested to be faster everywhere.
80% more vertically compliant IsoFlow
We refined our race-focused comfort tech to be lighter and have nearly double the vertical compliance so you can ride stronger longer.
Designed for the world’s best
Madone SLR Gen 8 is raced and loved by Lidl-Trek's fastest sprinters and climbers and the only bike they need for race day.
One-piece Aero RSL bar/stem
A new one-piece bar/stem is lighter, more aeryodynamic, and more ergonomic than the previous version. Plus, the hoods are 3cm narrower than the drops so you can adjust your positioning to prioritize aerodynamics (in the hoods) or power (in the drops).
RSL Aero Bottles and Cages
Included RSL Aero Bottles and Cages were specifically designed along with the whole rider system to help make Madone even faster.
Geometry
| B B Drop | 7 |
| Chainstay Length | 41 |
| Eff Top Tube | 54.5 |
| Frame Reach | 38.4 |
| Frame Size Letter | M |
| Frame Stack | 54.6 |
| Head Angle | 72.9° |
| Head Tube Length | 13.6 |
| Offset | 4.5 |
| Saddle Rail Height Max Short | 68.4 |
| Saddle Rail Height Max Tall | 72.6 |
| Saddle Rail Height Min Short | 62.1 |
| Saddle Rail Height Min Tall | 66.4 |
| Seat Tube | 47.6 |
| Seat Tube Angle | 73.6° |
| Standover | 76.2 |
| Trail | 5.8 |
| Wheelbase | 98.1 |
| Wheel Size | 700c |
