Shadowcat Team XTR Di2
Description
Product Details
- Ultra-Light Hollow Core carbon frame
- Class-leading strength to weight ratio
- Seamlessly integrated headset cups save weight and ensure easy service
- Excellent standover height for all sizes
- Custom tuned FOX Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
- 140mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric air shock
- Equipped with a 44mm offset 160mm-travel FOX 36 fork
- Agile and playful 27.5” wheels with tires up to 2.4”
- Long and low modern geometry for a confident ride
- Short 430mm chainstays for snappy cornering
- Large water bottle clearance on all sizes
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Hassle free full internal routing with Pivot cable port system
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
Tech Specs
| Build Level | TEAM |
| Build Kit Name | Team XTR Di2 |
| Frame | Shadowcat |
| Fork | Fox Factory 36 27.5", 44mm offset, GRIPX - 160mm |
| Rear Shock | Fox Factory Float DPS |
| Headset | Pivot Precision Sealed Integrated Cartridge |
| Rear Derailleur | Shimano XTR Di2 M9200 SGS 12-Speed |
| Cassette | Shimano XTR M9200 10-51t |
| Shifter | Shimano XTR Di2 M9200 ISPEC EV 12-Speed |
| Brakes | Shimano XTR M9220 4-piston |
| Crankset | Race Face ERA 32t |
| Handlebar | Phoenix Team Low Rise Carbon - 760mm (XS-SM) 780mm (MD-LG) |
| Grips | Phoenix Factory Lock-On |
| Stem | Phoenix Team Enduro/Trail - 45mm |
| Seatpost | Fox Transfer Neo Factory Series |
| Saddle | Phoenix WTB Team High Tail Trail (XS, SM), Phoenix WTB Volt Team (Medium Width) (MD-LG) |
| Wheels | Reynolds Blacklabel Trail Pro w/ Industry Nine hub, 32mm - 27.5" 15x110 F/12x148 R |
| Tires | Maxxis Dissector 27.5" x 2.4" TR, EXO Maxxis Dissector 27.5" x 2.4" TR, EXO |
| Rotors | Shimano XTR CenterLock - 180mm Shimano XTR CenterLock - 180mm |
| Chain | Shimano CN-M9100 12-Speed |
Product Identifiers
| Brand | Pivot Cycles |
| Type | Bicycle |
| SKU | 00SCTV127CXRB--BLMLGDRPYN |
| UPC | 196338220163 |
| MPN | — |
Shadowcat? Yes, Shadowcat
Lithe, agile, sharp, fast and fun, the Shadowcat is a trail-carving expression of blazing speed and feline creative mayhem. Pivot's latest offering capitalizes on the acceleration and responsiveness of 27.5" wheels and acclaimed dw-link™ suspension to bring to life a bike that offers transformative capability for riders of every stripe.
Lithe
A new frame that weighs less than our impressively light Trail 429 frame. Heck, this frame weighs only 45 grams more than our featherlight Mach 4SL. We're replacing the beloved Mach 5.5 with a 140mm ripper of a bike that weighs less than many dedicated XC machines. Super-low standover; small kittens and playful cats rejoice!
Fast
Incredibly capable dw-link™ suspension kinematics allow 140mm of travel to pedal with more snap and climb faster than many 120mm bikes. Serious light weight. Cheetah chasing down an antelope acceleration. The soul of a trail shredder with the legs of Usain Bolt.
FOX Live Valve Neo
Live Valve Neo constantly adapts to the trail, delivering optimized suspension settings in real-time. This cutting-edge system enhances your ride by automatically adjusting for both efficiency and control, so you can focus on pushing your limits. With Live Valve Neo, experience unmatched precision and a ride that’s perfectly tuned to the demands of the trail.

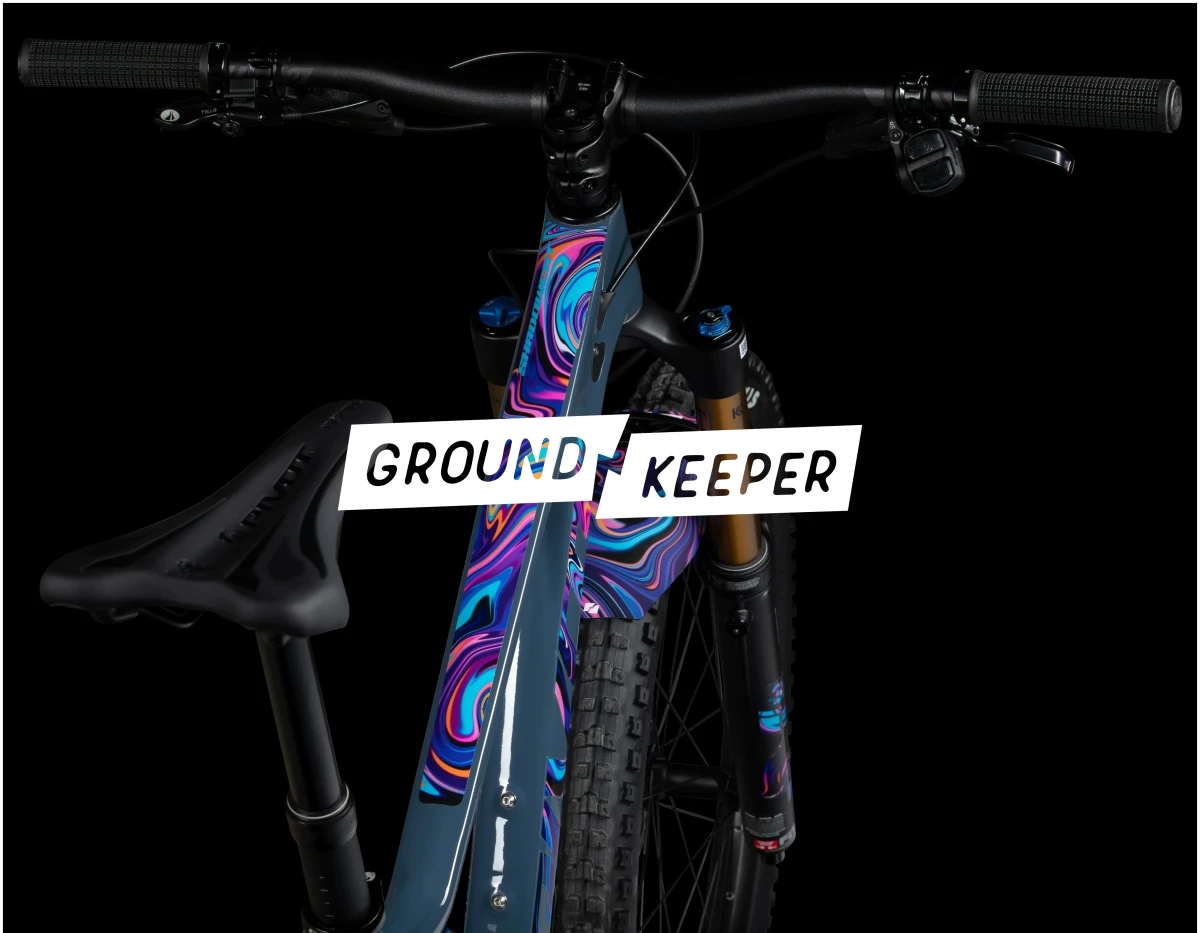

Ground Keeper Customs
Elevate your ride with the Pivot x Ground Keeper Customs Special Edition Shadowcat. When you choose a small or extra-small Shadowcat, you can now add the exclusive Disco Oil Slick graphic kit from Ground Keeper Customs—at no extra cost. This unique decal kit is preinstalled on your Shadowcat, available with any build level and comes exclusively with the stunning Blue Mirage color.
Geometry
| XS | SM | MD | LG | |
|---|---|---|---|---|
| Seat Tube Length (C-T) (Geometry) | 34.3 cm | 36.8 cm | 39.4 cm | 43.2 cm |
| Top Tube Length (Geometry) | 56.9 cm | 59.5 cm | 62.7 cm | 65.0 cm |
| Top Tube Length (160mm Fork) | 22.4 in | 23.4 in | 24.7 in | 25.6 in |
| Head Tube Length (Geometry) | 8.5 cm | 11.0 cm | 12.0 cm | 13.0 cm |
| Head Tube Angle (Geometry) | 65.8 | 65.8 | 65.8 | 65.8 |
| Seat Tube Angle (Eff.) (Geometry) | 76 | 76 | 76 | 76 |
| Chainstay Length (Geometry) | 43.0 cm | 43.0 cm | 43.0 cm | 43.0 cm |
| Bottom Bracket Height (Geometry) | 34.0 cm | 34.0 cm | 34.0 cm | 34.0 cm |
| Bottom Bracket Drop (Geometry) | 1.7 cm | 1.7 cm | 1.7 cm | 1.7 cm |
| Standover Height (Geometry) | 62.4 cm | 63.8 cm | 65.7 cm | 67.1 cm |
| Wheelbase (Geometry) | 114.2 cm | 117.2 cm | 120.6 cm | 123.0 cm |
| Stack (Geometry) | 58.2 cm | 60.5 cm | 61.4 cm | 62.3 cm |
| Reach (Geometry) | 41.0 cm | 43.0 cm | 46.0 cm | 48.0 cm |
